Products

DESCRIPTION

Basic Info

Model NO.	PE-DP-A1/A2
Laser Wavelength	LD Side Pumped ND:YAG Laser
Laser Classification	Laser
Type	YAG Laser Marking Machine
Marking Method	Scanning Marking
Average Life Ld	>12000 Hours
Max Ferquency	5000Hz
Focal Length	100mm
Accuracy	20μm~40μm
Repeat Offsite	10~20μm
Power	<350W 220V/50Hz
Condition	New
Wegiht	85 Kgs
Enveronment	Temperature 10-35°c, Humidity
Delivery Time	10 Working Days
Transport Package	Wooden Package
Specification	96*42*84cm
Trademark	perfect laser
Origin	China, Wuhan
HS Code	84561000
Production Capacity	800PCS/Month

Product Description

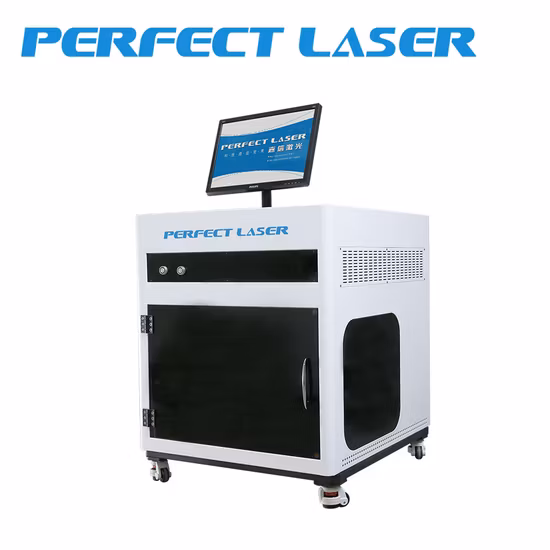

Perfect Laser-3d LED Crystal Cube/Trophy/Keychain/Craft Gift/Glass Ball /Cartoon with CCD Camera Human Portrait Photo Inside Subsurface CNC Laser Engraver Engraving Machines Price

Model:PE-DP-A1/A2Contact:Sophie

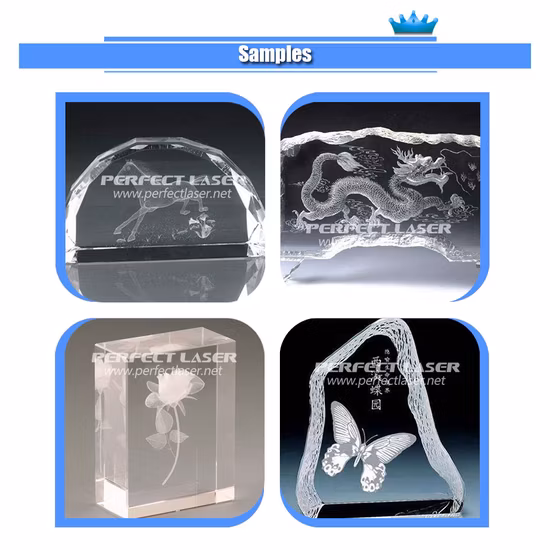

Product Introduction:Perfect Laser's 3D crystal laser engraving machine can engrave 2D or 3D stereoscopic pattern inside of crystal, glass and other transparent materials. It can engrave 2D/3D portrait, name footprints, trophies, medals, and other personalized gift and souvenirs, and it is also suitable for mass production of 2D/3D animals, plants, buildings, vehicles, ships, aircraft and other models of products and 3D scene display.

Application:
Applicable Materials:
The 3D laser photo crystal engraving machine is widely used in crystal, glass and many transparent materials.

Applicable Industries:
The 3D laser photo crystal engraving machine is widely used in tourism, hotels, photo studios, galleries, advertising, gift customization, toys and other industries.

Product Features:
1. Fast engraving speed: the 3D laser photo crystal engraving machine uses 3d innerengraving technology to produce images inside of crystal, the engraving speed is up to300,000 points/minute.

2. Big engraving range: the engraving area of the laser photo crystal engraving machine can reach 450mm×450mm×160mm, which can meet the needs of mass production.

3. Highly integrated: the 3D laser engraving machine price is equipped with an industrialcomputer. There is also a foldable bracket for placing the monitor and keyboard. It is very convenient to move with universal wheels.

4. Imported components: the 3D laser engraver price adopts US imported observe windows which can protect us from injured, and Taiwan imported famous brand guide rail and screw for better quality.

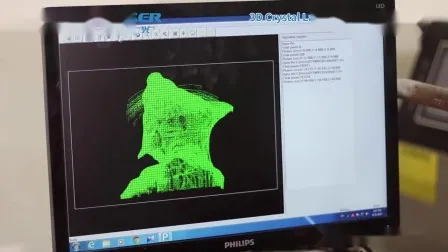

5. The 2D to 3D image software of the 3D laser engraver price is standard and supports multiple image formats.

6. An optional 3D camera can be used to directly generate 3D images for on-site engraving after taking pictures, which is especially suitable for personalized gift customization in large shopping malls, resorts and other places.



Technical Data

Model	PE-DP-A1	PE-DP-A2
LASER	YAG Diode Pump
AVERAGE LIFE LD	>20000 Hours	>12000 hours
MAX FREQUENCY	5000HZ	3000HZ
MAX RANGE SUPPORT SPLIT	400mm x 320mmx150mm	400mm x 300mmx120mm
FOCAL LENGTH	120mm	100mm
ACCURACY	20μm~40μm
MAX SPEED	5000 PIONTS / Second
REPEAT OFFSITE	10~20μm
POWER	<350W 220v/50Hz	<350W 110v/60Hz
WEIGHT	85 kgs
COOLING	Air cooling
ENVIRONMENT	Less dust and shock, Temperature 10-35°C, humidity < 85%
FILE FORMAT	BMP JPG DXF OBJ WRL 3DS STL
APPLICABLE MATE	All transparent material, Glass,Crystal, PMMA, etc.
PACKAGE SIZE	1070mm x 970mm x 1450m
MACHINE SIZE	800mm x 900mm x 980mm

Recommended by seller

Training&Service:1. 12months Gurantee Period;2. Free Online Consulting Service3. Free Operation Tranining in our factory;4. Detailed Operational Manual &Traning CD in English Version5. Guarantee of Quality and After Sales-Service:The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid



---Remark
1. Payment Terms: T/T before delivery.2. Production Lead Time: 7-15 working days after receipt of the advance payment. 3. Delivery Method: By sea (please indicate the destination port).4. Packing: Compound wooden cases comply with international exporting standard.



Company Information:We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.
